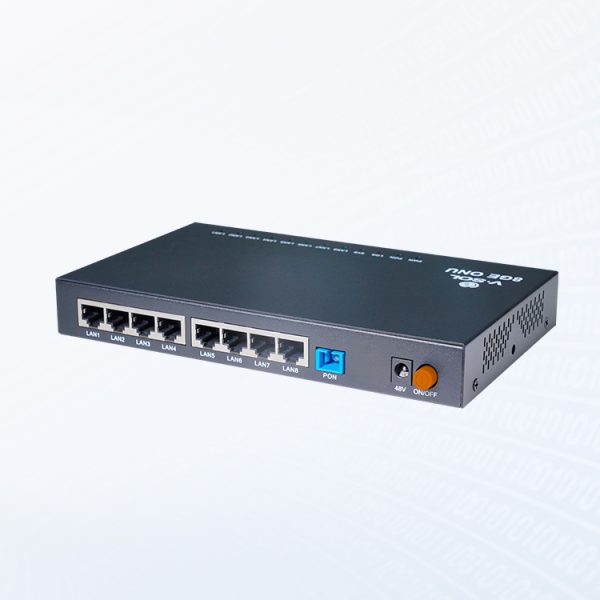

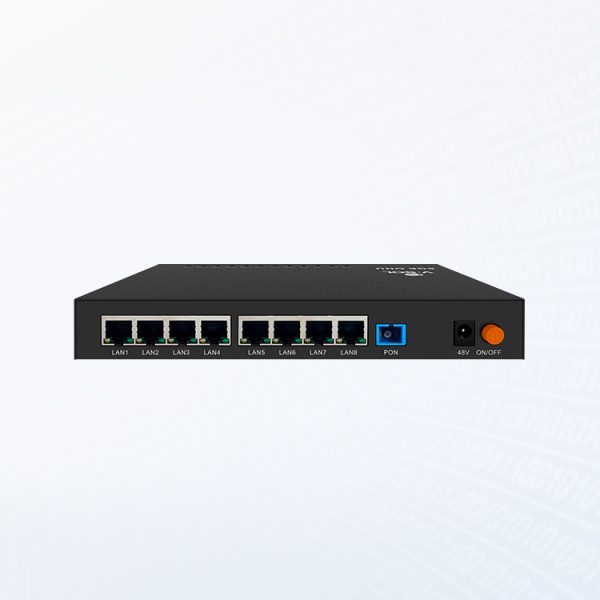

VSOL V2808-8GL-PSE
XPON ONU tidak ada WiFi
Compatible untuk semua Brand OLT GPON/EPON : ZTE, HUAWEI dll
1*XPON
8GE(PoE+)
MDU
Power adaptor: DC48V/2.5A
V2808-8GL-PSE ( XPON 8GE(PoE+) MDU ) is a broadband access device specially designed to meet the needs of telecom operators for FTTO (Office), FTTD (Desktop), FTTH (Home), SOHO access, and video surveillance access.This ONU is based on high-performance chip solutions, and also supports Layer 2 functions, providing data service for carrier-grade FTTH applications. The 8 network ports of this ONU all support PoE function, which can power IP cameras, wireless APs, and other devices through network cables.This ONU has high reliability, is easy to manage and maintain,and can provide QoS guarantee for various data services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
Hardware Parameter
Dimension 205*125*28mm(L×W×H)
Net weight 0.615kg
Operating condition
• Operating temp: -10 ~ +55°C
• Operating humidity: 10 ~ 90% (non-condensing)
Storing condition
• Storing temp: -30 ~ +70°C
• Storing humidity: 10 ~ 90% (non-condensing)
Power adapter DC 48V, 2.5A, external AC-DC power adaptor
Power supply ≤120W
Interfaces 8*GE(PoE+)
Indicators Power, PON, LOS, SYS,LAN1-8
Interface Parameter
PON interface
• 1XPON port(EPON PX20+ and GPON Class
B+) • SC single mode, SC/UPC connector • TX optical power: 0～+4dBm
• RX sensitivity: -27dBm
• Overload optical power: -3dBm(EPON) or – 8dBm(GPON) • Transmission distance: 20KM
• Wavelength: TX 1310nm, RX1490nm
LAN interface
8*GE(PoE+), Adaptive Ethernet interface, RJ45 connector
Function Data
PON mode
XPON Dual Mode , Can access mainstream
EPON/GPON OLT
Abnormal
protection Supports detecting illegal ONUs
Firewall
Function
Support DDOS, Filtering Based on
ACL/MAC/URL
Function Data
Basic
functions
• MPCP discovery and registration• Mac/oid/Mac+Loid authentication• Triple Churning
• DBA bandwidth
• automatic detection, configuration, andfirmware upgrade
• SN/Psw/oid/oid+PswauthenticationAlarm
• Dying Gasp
• port loop detection
• Eth Port Loss
LAN
• Supports port rate restrictions• Supports loop detection
• Supports flow control • Supports stormcontrol • Supports PoE+/POE, IEEE802.3at/af,withamaximum of 30Wper port
VLAN
• VLAN tag mode
• VLAN transparent mode
• VLAN trunk mode (up to 8vlan)
Multicast • IGMPv1/v2/Snooping
• Up to 8 multicast vlan
• Up to 64 multicast groups
QOS
• Supports 4 queues
• Supports SP and WRR• Supports 802.1P
Management • CTC OAM 2.0 and 2.1
• ITU-T 984. x OMCI • Support for WEB
• Support for TELNET
• Support for CLI
