ONU WIFI LENGKAP DENGAN SERTIFIKASI POSTEL !
GARANSI 1 TAHUN !
Compatible dengan semua OLT merek VSOL, C-Data, ZTE dan HUAWEI
Bisa dipakai untuk GPON / EPON OLT

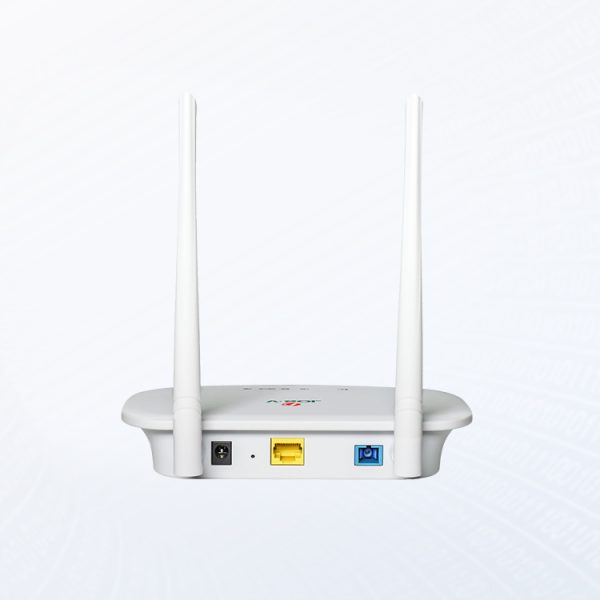

XPON ONU WiFi4 – 1GE 1FE
RJ45
DC Power 12V
Introduction:
V2801RGW(1GE+WiFi 4 XPON ONT) is specially designed to meet the access requirements of telecom operators such as FTTHandSOHO.The ONT is based on a high-performance chip solution (Realtek), supports mature IEEE 802.11 b/g/n WiFi 4 technology, and alsosupportsLayer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications. The ONT has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies withinternational
technical standards such as IEEE802.3ah, ITU-T G.984, etc.
○ Hardware Parameter
Dimension 120mm×78mm×30m(L×W×H)
Net weight 0.15Kg
Operating condition Operating temp: -10 ~ +55°C
Operating humidity: 5~95% (non-condensed)
Storing condition Storing temp: -40 ~ +70°C
Storing humidity: 5 ~ 95% (non-condensed)
Power adapter DC 12V, 0.5A, external AC-DC power adaptor
Power supply ≤ 6W
Interfaces 1GE+WiFi4
Indicators POWER, LOS, PON, LAN, WiFi
○ Interface parameter
PON interface
1 XPON port(EPON PX20+ & GPON Class B+)
SC single mode, SC/UPC connector
TX optical power: 0～+4dBm
RX sensitivity: -27dBm
Overload optical power: -3dBm(EPON) or -8dBm (GPON)
Transmission distance: 20KM
LAN interface 1*GE Auto-negotiation RJ45 ports
WiFi interface
IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm),300Mbps
Support 13 Channels
○ Function Data
PON mode XPON Dual mode , Can access to mainstream EPON/GPON OLTs
Software mode Routing mode
WiFi
WiFi Authentication: WEP/WAP-PSK(TKIP) /WAP2-PSK(AES)
Support: multiple SSID
Firewall DDOS, Filtering Based on ACL/MAC/ URL.
Layer2 802.1D & 802.1ad bridge, 802.1p Cos, 802.1Q VLAN.
Layer3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS.
Multicast IGMP v1/v2/v3 , IGMP snooping
Security Flow & Storm control, Loop Detection
O&M WEB/TELNET/OAM/OMCI/TR069
