EPON OLT 4 PON Sudah Termasuk 4pcs SFP PX20++++ 9dbm, .
GARANSI 12 BULAN
Siap Pasang dan Pakai !
Compatible dengan semua Onu Brand : ZTE-Huawei-CData-VSOL-Fiberhome dll
Single AC Power
Chassis Rack 1U
Uplink Total 8 Port
RJ45(GE) 4
SFP/ SFP+ 4
Single AC Power
Maximum Splitting Ratio 1:64
Introduction:

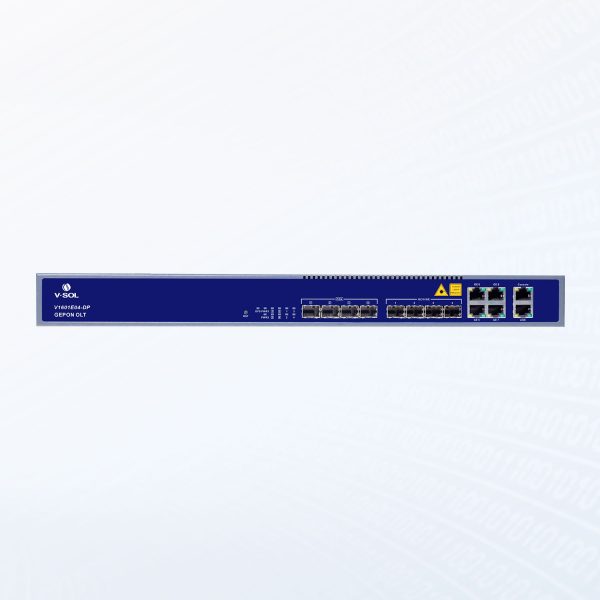

V-SOL V1601E04-DP/BT series EPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT’s can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and Internet service provider applications.
V1601E04-DP/BT provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. It can support overall 256 ONU’s with 64 ONU’s per PON port.
Key Features:
• STP/RSTP/MSTP
• IGMP Snooping
• VLAN Translation/Q-in-Q
• Port Aggregation
• Dynamic Bandwidth Allocation
• DHCP Snooping
• ACL
• Port Mirroring
• L3 Static Route, RIP/OSPF
• SNMP/Telnet/CLI/WEB/SSH
TechnicalSpecifications:
Management Ports
• 1*10/100BASE-T out-band port,
1*CONSOLE port, 1*USB port
PON Port Specification
• Transmission Distance: 20KM
• EPON port speed” Symmetrical
1.25Gbps
• Wavelength: TX-1490nm,
RX-1310nm
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
• L3 Static Route, RIP/OSPF
• SNMP/Telnet/CLI/WEB/SSH
• User management, Alarm management
