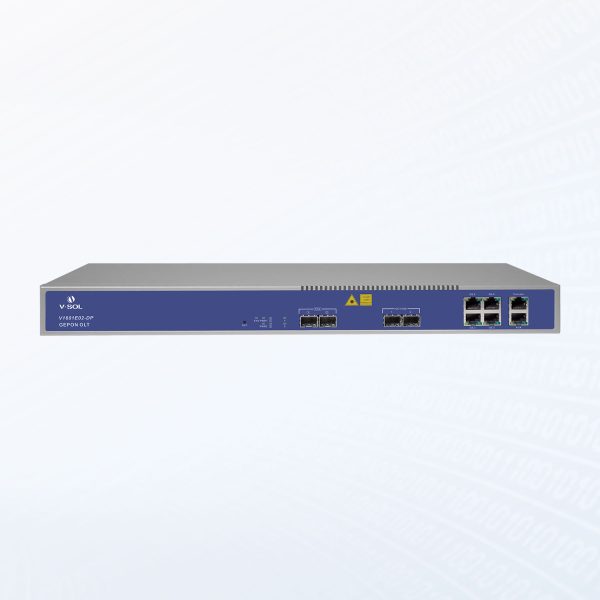

EPON OLT 2 PON SUDAH TERMASUK 2pcs SFP PX20++++ 9dbm, .
GARANSI 12 BULAN
siap pakai, siap pasang
Compatible dengan semua Onu merek ZTE dan HUAWEI ataupun Brand Lain
Chassis Rack 1U
Uplink Total 6 Port
RJ45(GE) 4
SFP(GE)/SFP+(10GE) 2
AC Single Power
Maximum Splitting Ratio 1:64
DAPAT MENAMPUNG MAX 128 USER
KeyFeatures:
• STP/RSTP/MSTP
• IGMP Snooping
• VLAN Translation/Q-in-Q
• Port Aggregation
• Dynamic BandwidthAllocation
Technical Specifications:
Management Ports
• 1*10/100 BASE-T out-band port, 1*CONSOLE port, 1*USB port
PON Port Specification
• Transmission Distance: 20KM
• EPON port speed”Symmetrical
1.25Gbps
• Wavelength: TX-1490nm, RX-1310nm
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
Management Mode
• SNMP/Telnet/CLI/WEB/SSH v2
Management Function
Layer 2 Feature
• 16K MAC address
• Support port VLAN
• Support 4096 VLANs
• Support VLAN tag/Un-tag, VLAN
transparent transmission, QinQ
• Support VLAN Translation: 2K
ingress & 1k egress
• Support IEEE802.3d(LACP): 128
groups
• Support RSTP, MSTP
• QoS based on port, VID, TOS
and MAC address
• IEEE802.x flow control • Support ACL: 2K Share in and
out • Port stability statistic and
monitoring; • Support P2P Function
Multicast • IGMP snooping
• Support 8K L2 multicast • Support 8K L3 multicast
DHCP
• DHCP server • DHCP relay
• DHCP snooping
• Fan Group Control;
• Port Status monitoring and configuration
management;
• Online ONU configuration and
management;
Layer 3 Features
• ARP proxy
• Static route
• Support Host Route(9KIPv4&3KIPv6) • Support Network Route(6KIPv4&2K IPv6 ) • Support RIPv1/v2, OSPFv2/v3• Support PPPoE+
