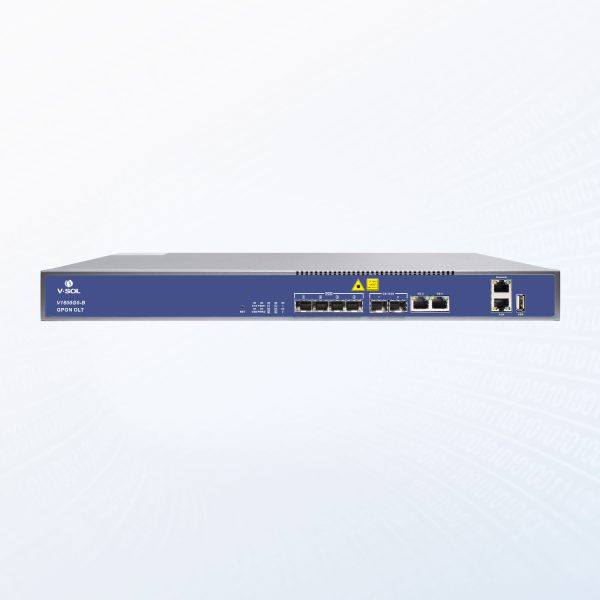

VSOL V1600G0-B 4Ports GPON OLT
GARANSI 12 BULAN + SERTIFIKASI POSTEL
Double Power AC+DC Power | Include 4x SFP C++++ 9dB
Package Contents:
– 1unit VSOL V1600G0-B
– 2pcs Kupingan Rackmunt + 4baut
– 4pcs Bantalan Kali Karet
– 1pcs Kabel Power C13
– 1pcs Kabel Grounding
– 1pcs Kabel DB9 to RJ45
– 4pcs SFP C++++ 9dB
Technical Specification
Item V1600G0-B
Chassis Rack 1U 19Inch Standard Box
GE/10GE Uplink Port QTY 4
RJ45(GE) 2
SFP(GE)/SFP+(10GE) 2
GPON Port Qty 4
Physical Interface SFP Slots
Connector Type Class: C++/C+++/C++++
Max splitting ratio 0,130555556
Management Ports 1*10/100/1000BASE-T out-band port, 1*CONSOLE port,
1*USB2.0
Backplane Bandwidth (Gbps) 104
Port Forwarding Rate(Mpps) 47.616
PON Port Specification (Class C+++module) Transmission Distance 20KM
GPON port speed Upstream 1.244Gbps, Downstream 2.488Gbps
Wavelength TX 1490nm, RX 1310nm
Connector SC/UPC
Fiber Type 9/125m SMF
TX Power +4.5~+10dBm
Rx Sensitivity -30dBm
Saturation Optical Power -12dBm
Management Mode EMS, TR069 VACS, WEB, SNMP, Telnet , CLI
Management Function SNMP,Telnet,CLI,WEB,SSH v2;
Fan Group Control
Port Status monitoring and configuration management
Online ONTconfiguration and management
User management
Alarm management
Layer2 Switch 32K Mac address
Support 4096 VLANs
Support port VLAN and protocol VLAN
Support VLAN tag/Un-tag, VLAN transparent transmission
Support VLAN translation and QinQ
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Support static LACP,Dynamic LACP
QoS based on port, VID, TOS and MAC address
Access control list
IEEE802.x flowcontrol
Port stability statistic and monitoring
Multicast IGMP snooping
2048 IP Multicast Groups;
DHCP DHCP server,DHCP relay,DHCP snooping
DHCP option82
Layer 3 Route ARP proxy
4096 hardware Host Routes,512 hardware Subnet Routes
Support 802.1X,Radius,Tacacs+
Support IP source guard
Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3;
IPv6 Support NDP;
Support IPv6 Ping,IPv6 Telnet,IPv6 routing;
Support ACL based on source IPv6 address, destina
