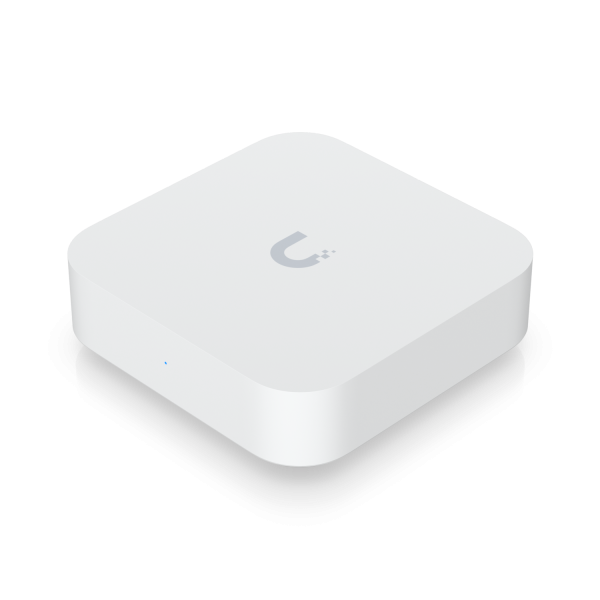

A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
Technical Specifications
Mechanical
Dimensions 98 x 98 x 30 mm (3.9 x 3.9 x 1.2″)
Weight 320 g (11.3 oz)
Enclosure material Polycarbonate
Hardware
Processor Dual-core ARM Cortex-A53 at 1 GHz
Memory information 1 GB DDR3L
Management interface Ethernet
Bluetooth 5.1

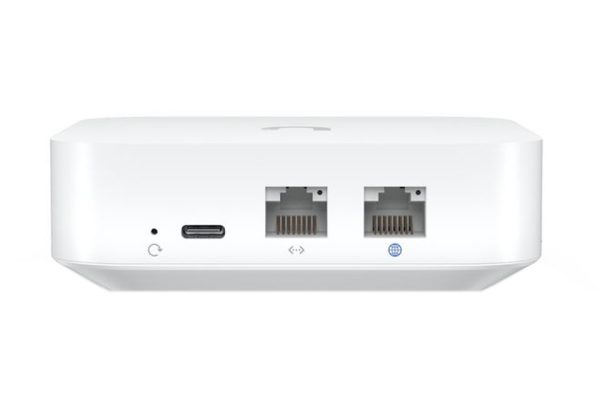

Networking interface LAN:
(1) GbE RJ45 port
WAN:
(1) GbE RJ45 port
Power method USB type C (5V/3A)
Supported voltage range 100240V
Max. power consumption 3.83W
Operating temperature -10 to 40 C (14 to 104 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support
*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key.
Application Requirements
UniFi Network Version 8.0.7 and later
