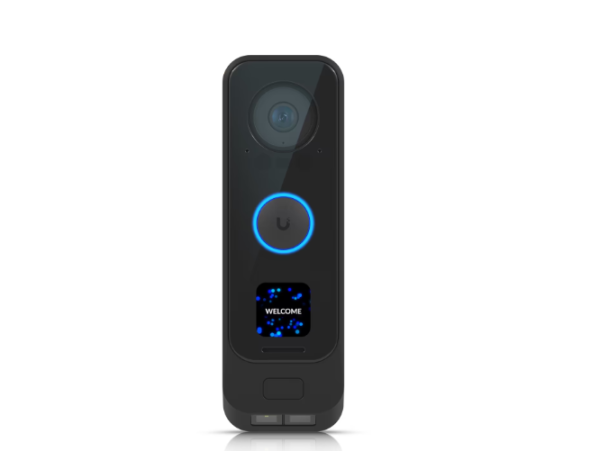

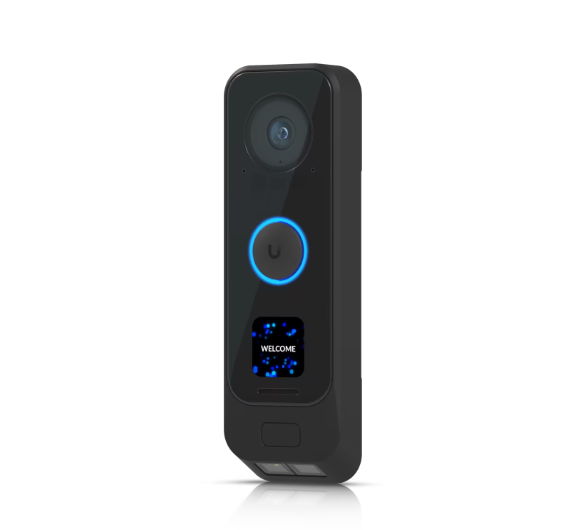

UBIQUITI UVC G4 DOORBELL PRO UVC-G4-Doorbell-Pro

Ubiquiti UVC-G4 Doorbell Pro G4 Doorbell Professional

Your premium UniFi doorbell with an enhanced package detection camera and integrated display.
Improved HDR and low-light performance

Programmable welcome display and secondary package-detection camera
6 m (20 ft) IR night vision
AI event detections
Wirelessly connected*
Integrated 2-way audio
Weather-resistant (outdoor covered)
*Auto-connect to UniFi WiFi.

Mechanical
Dimensions 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1″)
Weight Without mount: 253 g (8.92 oz)
With flat wall mount: 286 g (10.08 oz)
With 20° wedge mount: 325 g (11.46 oz)
Enclosure materials Polycarbonate, aluminum alloy
Mount materials Flat wall mount: aluminum alloy
20° wedge mount: polycarbonate
Weatherproofing IPX4

Optics
Sensor Main camera: 5MP CMOS sensor
Package camera: 8MP CMOS sensor
Lens Fixed focal length
View angle Main camera: H: 138°, V: 114°, D: 155°
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode Built-in IR LED illumination and IR cut filter

Video
Video compression H.264
Resolution 1600 x 1200 (4:3)
Max. frame rate 30 FPS

System
Processor Quad-core Arm Cortex-A53 based chip
Networking interface 802.11a/b/g/n/ac WiFi
Bluetooth 5.0
GbE support (with UACC-Adapter-DBPOE)
Max. power consumption 10W
Power requirements 16—24V AC, 1.25A max., 50/60 Hz
USB-C power cable, 5V DC, 2A
Supported voltage range 37—57V DC
LED Link/activity
Button (1) Ring button
(1) Factory reset
Mounting Flat wall, 20° wedge (Included)
Operating temperature -10 to 40º C (14 to 104º F)
Operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE

Software
Web application UniFi Protect: Version 1.21.0 and later
Mobile app UniFi Protect iOS: Version 1.5.8 and later
UniFi Protect Android: Version 1.4.8 and later
