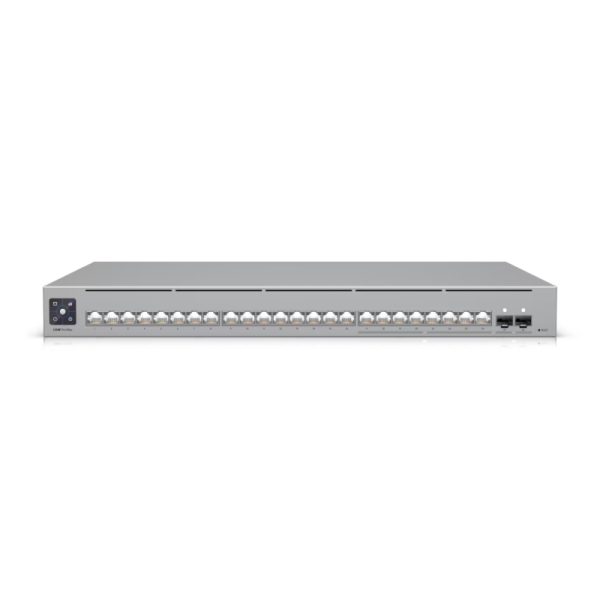

A 24-port, Layer 3 Etherlighting switch with 2.5 GbE and PoE++ output.
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Technical Specifications
Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8- )
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps
Power method (1) Universal input, 100240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 450W
Supported voltage range 100240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 4457V
PoE+: 5057V
LCM display (1) 1.3″ touchscreen
Button Factory reset
Operating temperature -5 to 40 C (23 to 104 F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Etherlighting
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
Application Requirements
UniFi Network Version 8.0.24 and later
