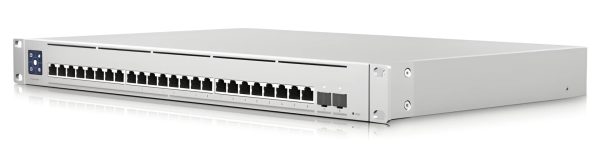

UBIQUITI USW-EnterpriseXG-24-EU UniFi Switch 24 port 10G 2x 25G SFP28

UBIQUITI USW-EnterpriseXG-24-EU UniFi Switch 24 port 10G 2x 25G SFP28

Features:
(24) 10GbE RJ45 ports
(2) 25G SFP28 ports
(1) USP RPS DC input for power redundancy
1.3″ LCM color touchscreen with AR switch management

Enclosure Materials SGCC Steel
Mount Material SGCC Steel

Hardware
Total Non-Blocking Throughput 290 Gbps
Switching Capacity 580 Gbps
Forwarding Rate 431.52 Mpps
Max. Power Consumption 100W

Power Method (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz
(1) USP-RPS DC input: 11.5VDC, 8.7A
Power Supply AC/DC, Internal, 100W
Management Interface Ethernet In-Band
Networking Interfaces (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
SFP28 Interfaces (2) 1/10/25 Gbps SFP28*

*The two SFP28 ports don’t support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
Services SMB Layer 3 Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
LCM Display 1.3″ Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Button Factory Reset
LEDs White: Link or Activity

Mechanical
Dimensions 442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)

Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 – 95% Noncondensing
Certifications CE, FCC, IC
