UBIQUITI UDW UNIFI DREAM WALL

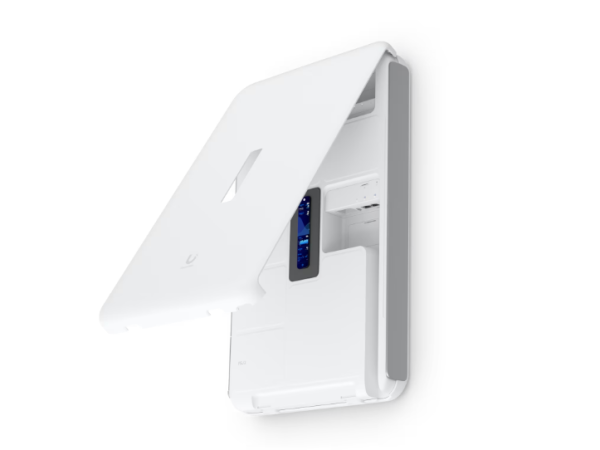

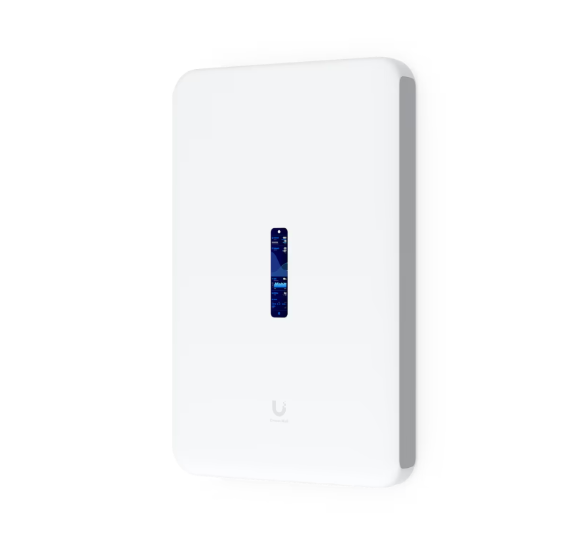

Dream Wall

All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.
Integrated Enterprise WiFi6 (4×4 MIMO)

Full UniFi OS and UniFi application support
3.5+ Gbps routing
(1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
4.7″ touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card

Technical Specifications

Mechanical
Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″)
Weight 8.6 kg (19 lb)
Enclosure materials Polycarbonate, galvanized steel, aluminum alloy
Mount material Stainless steel

Hardware
Processor Quad-core ARM Cortex-A57 at 1.7 GHz
System memory 4 GB DDR4
On-board storage 16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card
Expansion slot Micro SD memory card*
*Requires a memory card with at least 128 GB of storage.

Management interface
Ethernet
Bluetooth
WiFi

Networking interface
(17) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 port

SFP+ interface
(1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port

PoE interface
(4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 😎

Power method Universal AC input 100240V AC, 7A Max., 50/60Hz
Power supply (2) Hot-Swappable AC/DC 550W PSU*
*Comes with (1) pre-installed PSU.
Max. power consumption 532W
Max. PoE wattage per port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode
PoE: 4457V
PoE+/PoE++: 5057V

Max. TX power
2.4 GHz
5 GHz
23 dBm
26 dBm

MIMO
2.4 GHz
5 GHz
2 x 2
4 x 4

Throughput rate
2.4 GHz
5 GHz
300 Mbps
2.4 Gbps

Antenna gain
2.4 GHz
5 GHz
5.9 dBi
6 dBi
