Ubiquiti UAP NanoHD / UniFi Nano HD Access Point 4×4 MU-MIMO ( Include POE )

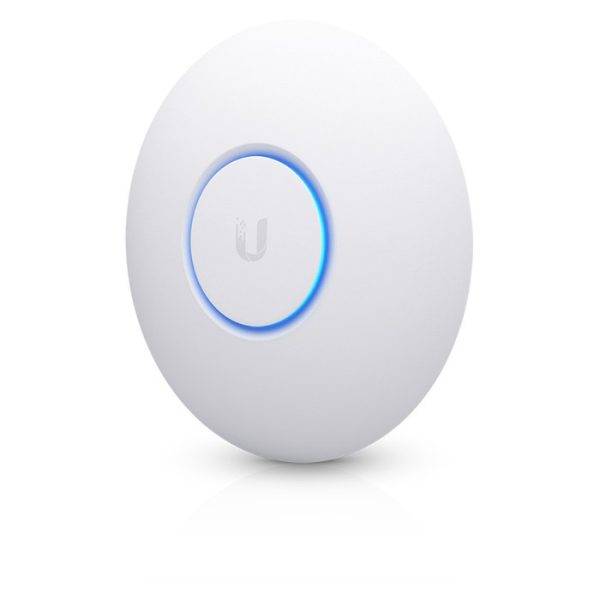

The UniFi nanoHD is a compact 4×4 MU-MIMO 802.11ac Wave 2 dual-band access point with an aggregate radio rate of over 2 Gbps and supports over 200 concurrent users. Engineered to take advantage of 802.11ac Wave 2, the UniFi nanoHDprovides powerful multi-user support in an elegant, nano-sized design.

Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point.
4×4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2×2 MIMO on 2.4GHz (300Mbps max PHY rate)
802.3af
Same mount as UAP-AC-Lite.

Networking Interface (1) RJ45 GbE
Buttons (1) Reset to Defaults
Power Method 802.3af
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Operating Frequency 2.4 GHz & 5 GHz
Max. TX Power
2.4 GHz 23dBm
5 GHz 26dBm

Antenna Gain
2.4 GHz 2.8dBi
5 GHz 3dBi

MIMO
2.4 GHz 2×2
5 GHz 4×4

Throughput
2.4GHz 300Mbps
5GHz 1733Mbps

Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
