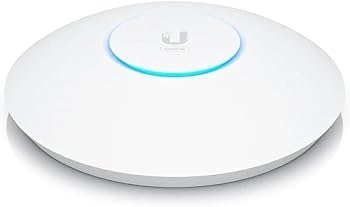

UBIQUITI U6-ENTERPRISE Unifi Wifi-6E Enterprise Ceiling Access Point
(Dalam kemasan pabrikan tidak termasuk POE Adaptor, POE Adaptor dijual terpisah)
Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.
Features:
WiFi 6 support (2.4/5/6 GHz bands)
10.2 Gbps aggregate throughput rate
(1) 2.5GbE RJ45 port (PoE In)
Powered with PoE+
Use with our USW Enterprise switches for maximum throughput
Mechanical
Dimensions 220 x 48 mm (8.66 x 1.89″)
Weight Without mount: 960 g (2.1 lb)
With mount: 1090 g (2.4 lb)
Enclosure materials Polycarbonate, aluminum
Mount material SGCC steel
Hardware
Networking interface (1) 2.5GbE RJ45 port
Management interface Ethernet
Bluetooth
Power method PoE+
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (optional)
Supported voltage range 4457V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5-7 GHz
22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
3.2 dBi
5.3 dBi
6 dBi
LEDs White/blue
Button Reboot and factory-reset
Mounting Wall/ceiling (included)
Operating temperature -30 to 60 C (-22 to 140 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 600+
Zero wait DFS Yes
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
