UBIQUITI U-POE-AT PoE Injector 802.3at POE-AT

U-POE-AT discontinued, digantikan dengan U-POE+ dengan spesifikasi yang sama 30Watt

Compatibility with :
U7-Pro
U7-Pro-Wall
U7-Outdoor
U6-Enterprise
U6-LR
U6-Enterprise-IW
U6-IW
UTP-TouchMax
UVC-AI-DSLR
UVC-AI-Pro

Compact adapter capable of delivering 30W of PoE+ to the U6 LR, U6 Pro, and other 802.3at devices.

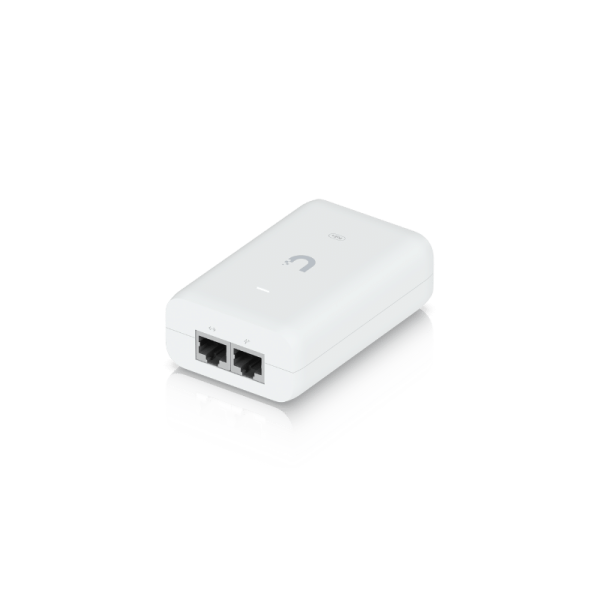

The 802.3at PoE+ Injector (U PoE AT) is designed to power 802.3at PoE+ devices. The U PoE AT delivers up to 30W of PoE+ that can be used to power the Access Point WiFi 6 Long-range (U6 LR), Pro (U6 Pro), and other devices that adhere to the 802.3at PoE+ standard. It also provides enhanced protection against electrical surges.

93 x 62 x 35 mm
(3.66 x 2.44 x 1.38″)
156 g (5.5 oz)
48VDC @ 0.65A
No
Yes
Yes
No
100-240VAC @ 50/60Hz
0.75A@90VAC
<100A Peak @230VAC, 26°C
87+%
1% Max.
70 kHz Max.
≤ 3%
≤ 5%
Pins 4, 5 (+) and
Pins 7, 8 (-
