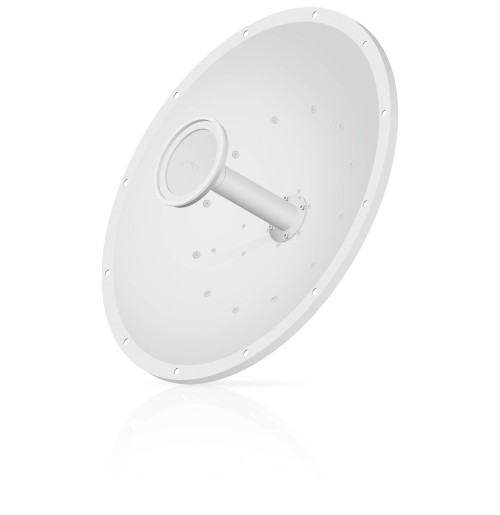

Ubiquiti Networks RocketDish 5G 30DBi (RD-5G30)
Overview
Pair a RocketDish antenna with a Rocket basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).
Powerful Performance
The RocketDish antenna delivers 2×2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector with Rocket delivers bandwidth to the ISPs customers.
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrialstrength hardware for outdoor application use.
Specifications:
~ Model : RD-5G30
~ Dimensions : 650 x 650 x 304 mm
~ Frequency Range : 5.1 – 5.8 GHz
~ Gain : 30DBi
~ HPOL Beamwidth : 5degree (3 dB)
~ VPOL Beamwidth : 5degree (3 dB)
~ F/B Ratio : 34 dB
~ Max. VSWR : 1.4:1
~ Wind Loading : 787 N @ 200 km/h (177 lbf @125 mph)
~ Wind Survivability : 200 km/h (125 mph)
~ Polarization : Dual-Linear
~ Cross-pol Isolation : 35 dB Min.
~ ETSI Specification : EN 302 326 DN2
~ Mounting : Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
