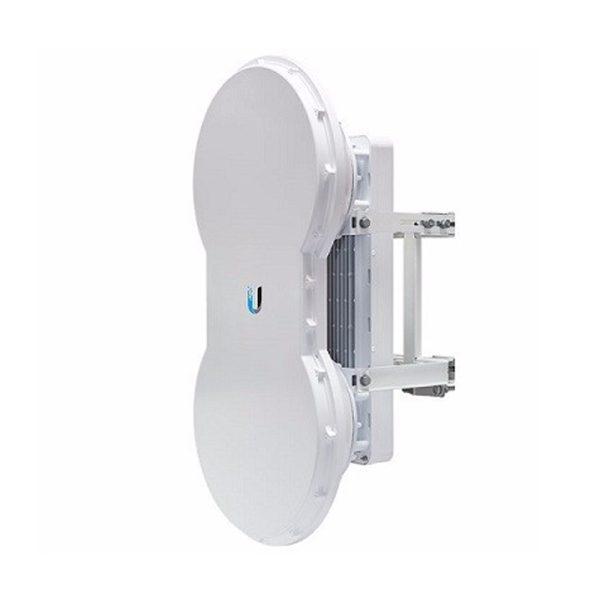

UBIQUITI AF-5U Airfiber 5U PTP High Band Bridge 1,2+ Gbps Throughput Rate

UBIQUITI AF-5U Airfiber 5U PTP High Band Bridge 1,2+ Gbps Throughput Rate

Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.

Revolutionary Wireless Technology

Introducing airFiber, a truly revolutionary Point-to-Point wireless platform from Ubiquiti. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Supports high-band 5 GHz frequencies.

airFiber
Operating Frequency 5725 – 5850 MHz (FCC 15.247, IC RSS 21) 5725 – 5875 MHz (ETSI EN 302 502) 5725 – 6200 MHz (Other Regions)
Dimensions 938.4 x 468.4 x 281.4 mm
Weight 16 kg (Mount included)
Maximum Power Consumption 40 W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Wind Loading 194 lbf @ 125 mph
Wind Survivability 125 mph
Operating Temperature -40 to 55C (-40 to 131 F)
LEDs (12) Status LEDs:
Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, Overload
Remote and Local Displays (Calibrated Signal Strength)
Interface
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 1.0+ Gbps
Maximum Range 100+ km (Dependent on Regulatory Region)
Packets per Second 1+ Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed
Radio Frame Synchronization GPS
Dynamic Frequency Selection CE, (FCC/IC Not Applicable)
Radio Frequency
GPS GPS Clock Synchronization
EIRP ~33 dBm (FCC/IC), ~20 dBm (CE)
Frequency Accuracy 2.5 ppm without GPS Synchronization
0.2 ppm with GPS Synchronization
Channel Bandwidth 100 MHz
Modulation 64QAM MI
