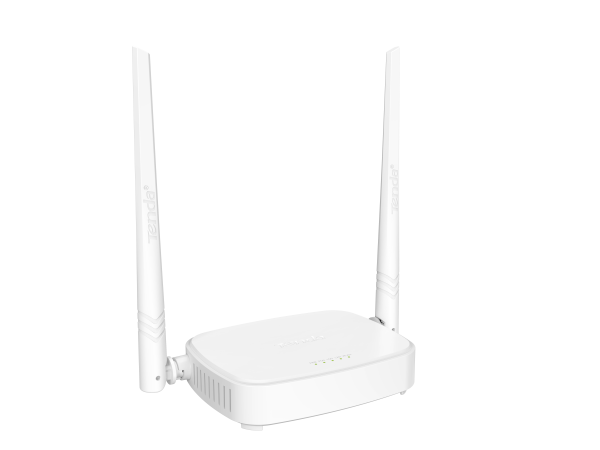

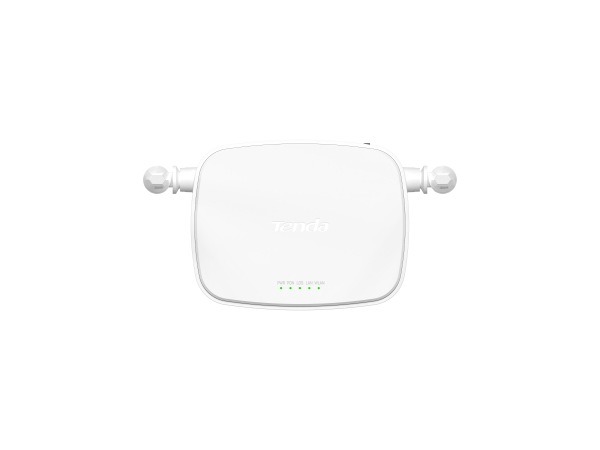

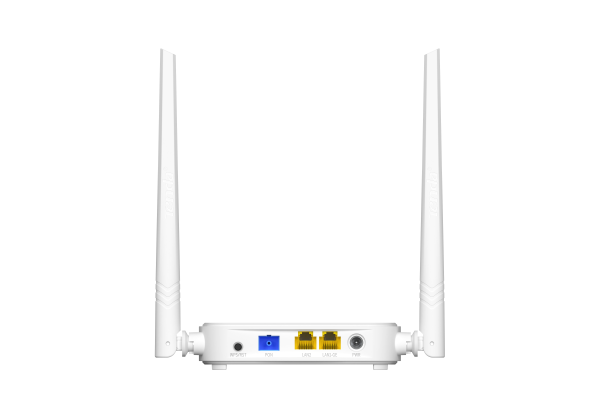

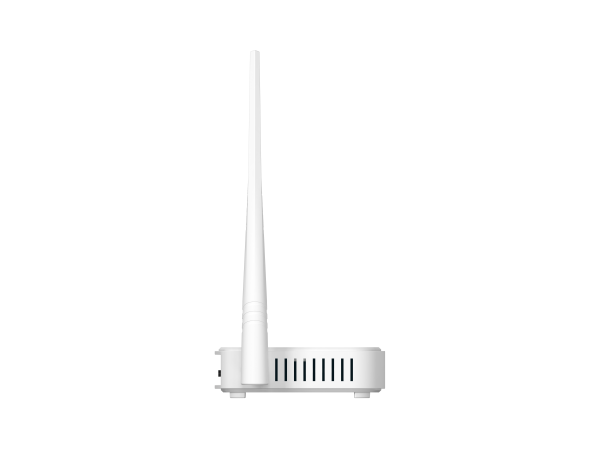

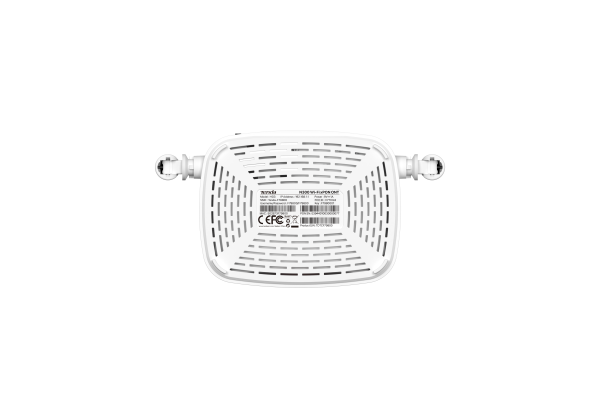

TENDA HG3 N300 Wi-Fi xPON ONT

Hardware IEEE Standards : IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards : GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
EPON: IEEE802.3ah Interfaces : 1*SC/APC (or UPC) Port, 1*1000Mbps RJ45 LAN Port, 1*100Mbps RJ45 LAN Port, 1*DC Port LED Indicator : 1*WPS/RST Button Button : 1*WPS/RST Button Optical Mode : Class B+
Optical Wavelength : Transmit at 1310nm, Receive at 1490nm
Transmission Distance : 20km Max Bandwidth Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension : 166.6*90.5*27mm (W * D * H) TX Power : 0.5~5dBm RX Power : -28~-8dBm
External Power Supply : DC 9V /1A Power Consumption : ≤9w
Software DHCP Server : PPPOE, Dynamic IP, Static IP, Bridge,
Support Multiple WAN Connection WAN Connection : PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection Business Type : TR069, Internet, IPTV Quality Of Service : Bandwidth Control IP Version : IPv4, IPv6 Services : DHCP, Dynamic DNS , IGMP Proxy UPnP VPN Pass-through : PPTP, L2TP, IPsec Pass-through Firewall : ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ IPv6 : Radvd, DHCPv6, MLD Proxy, MLD Snooping Wireless Frequency : 2.4GHz Bandwidth : 20M/40M Channel Range : CH1-CH13 Antenna : 2 * 5 dBi Antenna Easy Client Setup : WPS/RST Button Speed : 11n 300M Transmission Power : lt;20 dBm(EIRP) Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security : 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering SSIDs : Main SSID ,4 Guest SSIDs Max Terminal Linked : 16 Environment Operation Temperature : 0°c ~ 45°c Storage Temperature : -40°c ~ 70°c Operating Humidity : 10% ~ 90% (Non-condensing) Storage Humidity : 5% ~ 90% (Non-condensing) Others Package Contents : 1*HG3, 1* Power adapter, 1* User Manual, 1* RJ45 cable Certification : CE, FCC , RoHS
